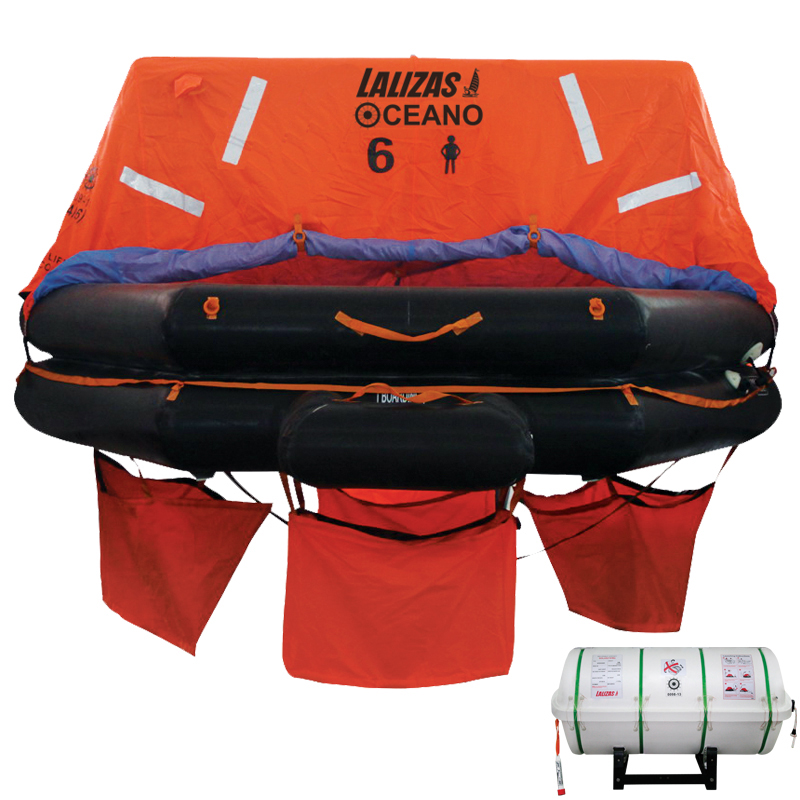

Balsa salvavidas SOLAS OCEANO, Tirar por la borda
Aprobado por SOLAS/MED por DNV GL
• Para uso a bordo de buques profesionales sujetos a viajes internacionales
•Equipamiento: SOLAS Pack A o SOLAS Pack B
• Capacidades disponibles: de 6 a 35 personas
• Opción de contenedor plano disponible (capacidades de 8 a 12 personas)
• Recipiente de PRFV
• Tela de goma duradera
• Tubos de doble cámara
• Altura de almacenamiento de hasta 36 m (Painter line hasta 46 m)
• suelo con aislamiento térmico para condiciones de baja temperatura
• Toldo de alta visibilidad con cintas reflectantes SOLAS
• Totalmente operativo a temperaturas desde -300C hasta +650C
• Red global de estaciones de servicio
• Suministrado con soporte en caja de madera (79880-79882 se suministran en caja de madera sin soporte)
*Código Impa 330101, 330161, 330102, 330162, 330103, 330163, 330103, 330104, 330164, 333333333331 , 330165
| Imagen | Código | Número máximo de personas | Pack | Peso (kg) | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
79867 | 6 | A | 76 | 1200mm | 2104mm | 2104mm | 1090mm | 615mm | - | - | - |
|
79868 | 8 | A | 85 | 1250mm | 2390mm | 2390mm | 1090mm | 615mm | - | - | - |
|
79869 | 10 | A | 98 | 1400mm | 2694mm | 2694mm | 1230mm | 630mm | - | - | |
|
79870 | 12 | A | 108 | 1500mm | 2924mm | 2924mm | 1230mm | 630mm | - | - | - |
|
79871 | 15 | A | 1600mm | 3238mm | 3238mm | 1285mm | 670mm | - | - | - | |
|
79872 | 16 | A | 127 | 1600mm | 3330mm | 3330mm | 1285mm | 670mm | - | - | - |
|
79873 | 20 | A | 149 | 1600mm | 4304mm | 2974mm | 1335mm | 696mm | - | - | - |
|
79874 | 25 | A | 178 | 1650mm | 4894mm | 3194mm | 1490mm | 757mm | - | - | - |
|
79875 | 30 | A | 205 | 1700mm | 5384mm | 3414mm | 1700mm | 765mm | - | - | - |
|
79876 | 35 | A | 223 | 1750mm | 5899mm | 3568mm | 1700mm | 765mm | - | - | - |
|
|
79880 | 8 | Flat-A | 85 | 1250mm | 2390mm | 2390mm | - | - | 564mm | 994mm | 405mm |
|
|
79882 | 12 | Flat-A | 108 | 1500mm | 2924mm | 2924mm | - | - | 664mm | 1044mm | 405mm |
|
|
79903 | 6 | B | 66 | 1200mm | 2104mm | 2104mm | 1045mm | 545mm | - | - | - |
|
|
79904 | 8 | B | 73 | 1250mm | 2390mm | 2390mm | 1045mm | 545mm | - | - | - |
|
|
79905 | 10 | B | 82 | 1400mm | 2694mm | 2694mm | 1090mm | 615mm | - | - | - |
|
|
79906 | 12 | B | 92 | 1500mm | 2924mm | 2924mm | 1090mm | 615mm | - | - | - |
|
|
79908 | 16 | B | 100 | 1600mm | 3330mm | 3330mm | 1230mm | 645mm | - | - | - |
|
|
79909 | 20 | B | 120 | 1600mm | 4304mm | 2974mm | 1285mm | 670mm | - | - | - |
|
|
79910 | 25 | B | 135 | 1650mm | 4894mm | 3194mm | 1335mm | 696mm | - | - | - |
|
|
79911 | 30 | B | 140 | 1700mm | 5384mm | 3414mm | 1490mm | 757mm | - | - | - |
|
|
79912 | 35 | B | 148 | 1750mm | 5899mm | 3568mm | 1490mm | 757mm | - | - | - |
| STANDARD EQUIPMENT | SOLAS Pack A | SOLAS Pack B |
|---|---|---|
| Portable buoyant bailer | ≤12 persons →1 pc >12 persons→2 pcs | ≤12 persons →1 pc >12 persons→2 pcs |
| Sponge | 2 | 2 |
| Buoyant paddles | 2 | 2 |
| Whistle | 1 | 1 |
| Waterproof torch /separate battery /bulb | 1 | 1 |
| Signalling mirror | 1 | 1 |
| Anti-seasickness pills/per person | 6 | 6 |
| Seasickness bag/per person | 1 | 1 |
| Red hand flares | 6 | 3 |
| Red parachute flares | 4 | 2 |
| Repair kit | 1 | 1 |
| Bellow | 1 | 1 |
| First-aid kit | 1 | 1 |
| Orange Smoke Signals | 2 | 1 |
| Food ration/per person | 10000kJ | - |
| Fresh water/per person | 1,5L | - |
| Floating anchor with 30m rope | 2 | 2 |
| Tin opener | 3 | |
| Fishing tackle | 1 | 1 |
| Radar reflector | 1 | 1 |
| Thermal protective aids | 2 | 2 |
| Drinking cup | 1 | - |
| Mooring Ring with 30m rope | 1 | 1 |
| Safety knife connected to the liferaft, buoyant, fixed blade, rounded tips | ≤12 persons →1 pc >12 persons→2 pcs | ≤12 persons →1 pc >12 persons→2 pcs |
| Operational manual | 1 | 1 |
| Survival at sea - Instruction Manual | 1 | 1 |
| Table of the life-saving signals | 1 | 1 |
| Log Book | 1 | 1 |
